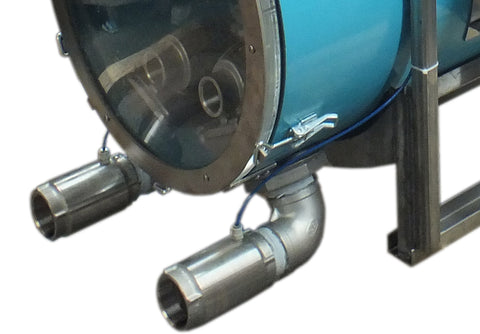

Horizontal releaser 14 "I.D. stainless steel pump with manifold

$4,600⁰⁰
Save $0⁰⁰

Quantity

Electric releaser with submersible pump allows high vacuum operation
All oversized components to operate at high vacuum
Covered with stainless steel ring with adjustable clip
Stainless steel check valve
Manual-off-automatic switch
Level control by adjustable electrode with switch
Standard height of the main lines at 21 "
No air entering your network
Increases the number of vacuum CFM during operation
Center suction pump
14 "diameter tank
Stainless steel slide for cleaning the pump
Stainless steel frame
Manifold with pvc filter for arrival of the main lines

Model and voltage to be specified
2x is to indicate that there are two pumps

1 / 2hp 115 volt 6 gpm 75 psi 10s05-9 1 1/4 "FPT # 01250404BM
1 / 2hp 230 volt 6 gpm 75 psi 10s05-9 1 1/4 "FPT # 01250474BM
2x 1 / 2hp 230 volt 12 gpm 75 psi 10s05-9 1 1/4 "FPT # 01250475BM
1hp 230 volt 6 gpm 150 psi 10s10-15 1 1/4 "FPT # 01250476BM
2x 1hp 230 volt 12 gpm 150 psi 10s10-15 1 1/4 "FPT # 01250477BM
1hp 230 volt 9 gpm 75 psi 16s10-10 1 1/4 "FPT # 01250478BM
2x 1hp 230 volt 18 gpm 75 psi 16s10-10 1 1/4 "FPT # 01250479BM
1hp 230 volt 11 gpm 50 psi 25s10-7 1 1/2 "FPT # 01250472BM
2x 1hp 230 volt 22 gpm 50 psi 25s10-7 1 1/2 "FPT # 01250480BM
2hp 230 volt 9 gpm 175 psi 16s20-18 1 1/4 "FPT # 01250481BM
2x 2hp 230 volt 18 gpm 175 psi 16s20-18 1 1/4 "FPT # 01250482BM
2hp 230 volt 12 gpm 100 psi 25s20-11 1 1/2 "FPT # 01250483BM
2x 2hp 230 volt 24 gpm 100 psi 25s20-11 1 1/2 "FPT # 01250484BM
2hp 230 volt 20 gpm 50 psi 40s20-7 2 "FPT # 01250485BM
2x 2hp 230 volt 40 gpm 50 psi 40s20-7 2 "FPT # 01250486BM
3hp 230 volt 40 gpm 25 psi 62s30-5 2 "FPT # 01250487BM
2x 3hp 230 volt 80 gpm 25 psi 62s30-5 2 "FPT # 01250488BM

Specification if 1/2hp 10s05-9 1 1/4" FPT
# 01250404BM (115 volt) or # 01250474BM (230 volt)
Flow is for 1 pump so need x2 for 01250475BM with 2 pumps 10S05-9
Maximum pressure: 100psi & nbsp;
Flow rate at 25 hg 0psi: 12gpm (Max 4000 taps)
Flow rate at 25 hg 75psi: 8gpm (Max 2500 taps) & nbsp;
Flow rate at 28.5 hg 0psi: 7gpm (Max 2000 taps)
Flow rate at 28.5 hg 75psi: 6gpm (Max 2000 taps) & nbsp;
Specification if 1hp 10s10-15 1 1/4" FPT # 01250476BM (230 volt)
Flow is for 1 pump so need x2 for 01250477BM with 2 pumps 10S10-15
Maximum pressure: 175psi & nbsp;
Flow rate at 25 hg 0psi: 12gpm (Max 4000 taps)
Flow rate at 25 hg 150psi: 8gpm (Max 2500 taps) & nbsp;
Flow rate at 28.5 hg 0psi: 7gpm (Max 2000 taps)
Flow rate at 28.5 hg 150psi: 6gpm (Max 2000 taps) & nbsp;
Specification if 1hp 16s10-10 1 1/4" FPT # 01250478BM (230 volt)
Flow is for 1 pump so need x2 for 01250479BM with 2 pumps 16S10-10
Maximum pressure: 125psi & nbsp;
Flow rate at 25 hg 0psi: 18gpm (Max 6000 taps)
Flow rate at 25 hg 75psi: 16gpm (Max 5000 taps) & nbsp;
Flow rate at 28.5 hg 0psi: 9gpm (Max 3000 taps)
Flow rate at 28.5 hg 75psi: 9gpm (Max 3000 taps)
Specification if 1hp 25s10-7 1 1/2 "FPT # 01250472BM (230 volt)
Multiply the flow rate by 2 for 01250480BM with 2 pumps 25S10-7
Maximum pressure: 85psi & nbsp;
Flow rate at 25 hg 0psi: 26gpm (Max 8000 taps)
Flow rate at 25 hg 50psi: 21gpm (Max 7000 taps) & nbsp;
Flow rate at 25 hg 75psi: 12gpm (Max 4000 taps) & nbsp;
Flow rate at 28.5 hg 0psi: 13gpm (Max 4000 taps)
Flow rate at 28.5 hg 50psi: 11gpm (Max 3500 taps)
Flow rate at 28.5 hg 75psi: 6gpm (Max 2000 taps)
Specification if 2hp 16s20-18 1 1/4 "FPT # 01250481BM (230 volt) & nbsp;
Multiply the flow rate by 2 for 01250482BM with 2 pumps 16S20-18
Maximum pressure: 225psi & nbsp;
Flow rate at 25 hg 0psi: 20gpm (Max 6500 taps)
Flow rate at 25 hg 100psi: 18gpm (Max 6000 taps) & nbsp;
Flow rate at 25 hg 200psi: 10gpm (Max 3000 taps) & nbsp;
Flow rate at 28.5 hg 0psi: 9gpm (Max 3000 taps)
Flow rate at 28.5 hg 175psi: 9gpm (Max 3000 taps)
Specification if 2hp 25s20-11 1 1/2 "FPT # 01250483BM & nbsp; (230 volt) & nbsp;
Multiply the flow rate by 2 for 01250484BM with 2 pumps 25S20-11
Maximum pressure: 135psi & nbsp;
Flow rate at 25 hg 0psi: 24gpm (Max 9000 taps)
Flow rate at 25 hg 100psi: 24gpm (Max 9000 taps)
Flow rate at 28.5 hg 0psi: 12gpm (Max 4000 taps)
Flow rate at 28.5 hg 100psi: 12gpm (Max 4000 taps)
Specification if 2hp 40s20-7 2 "FPT # 01250485BM (230 volt) & nbsp;
Multiply the flow rate by 2 for 01250486BM with 2 pumps 40S20-7
Maximum pressure: 75psi & nbsp;
Flow rate at 25 hg 0psi: 45gpm (Max 15,000 taps)
Flow rate at 25 hg 50psi: 30gpm (Max 10,000 taps) & nbsp;
Flow rate at 28.5 hg 0psi: 21gpm (Max 7000 taps)
Flow rate at 28.5 hg 50psi: 20gpm (Max 6500 taps)
Specification if 3hp 62s30-5 2 "FPT # 01250487M (230 volt)
Multiply the flow rate by 2 for 01250488M with 2 pumps 62S30-5
Maximum pressure: 80psi & nbsp;
Flow rate at 25 hg 0psi: 70gpm (Max 23,000 taps)
Flow rate at 25 hg 50psi: 55gpm (Max 18000 taps) & nbsp;
Flow rate at 28.5 hg 0psi: 42gpm (Max 14,000 taps)
Flow rate at 28.5 hg 25psi: 40gpm (Max 13,000 taps)
Flow rate at 28.5 hg 50psi: 30gpm (Max 10,000 taps)

Drawing to complete when ordering (PDF)
